Step-by-Step EZYHEX Installation Guide

1. PREPARE YOUR SURFACE

Begin by clearing and levelling the area where you'll be installing the Ezyhex grids. Ensure the surface is free from debris, and remove any uneven spots. Not recommended for slops greater than 15%.

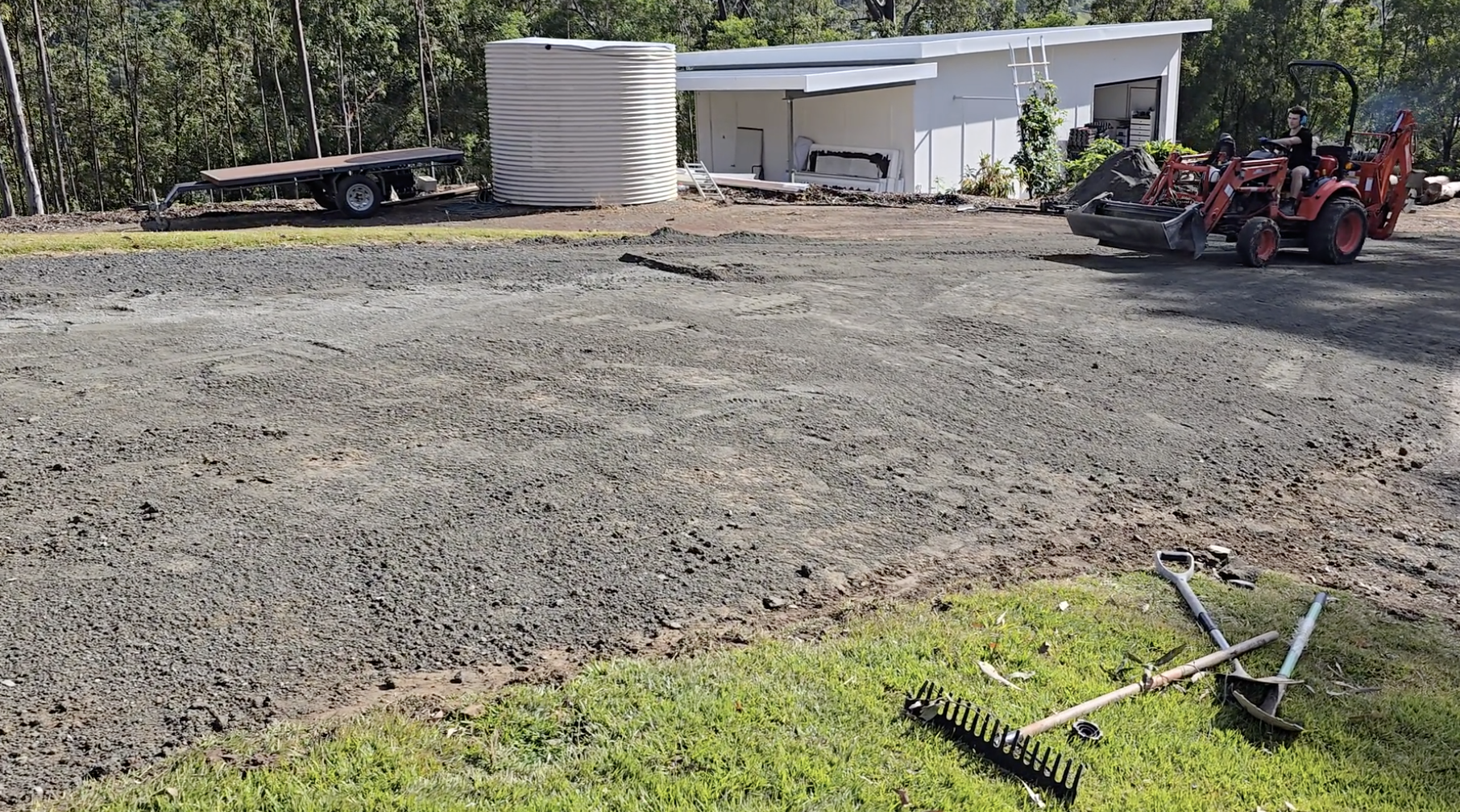

2. LAY DOWN ROAD BASES

Spread a layer of road base or fine gravel over the area, ensuring a depth of 50-100mm depending on the type of traffic the surface will handle. Compact this layer to create a smooth and stable base.

3. LAY THE GEOTEXTILE MAT IF REQUIRED

Place the geotextile mat on the prepared surface. Smooth it out to eliminate any wrinkles or folds, ensuring it lays flat.


4. MEASURE AND CUT THE EZYHEX GRIDS

Use basic tools like a handsaw or grinder to cut the Ezyhex grids to the appropriate size for your project. Measure the area carefully and
cut as needed to fit the space perfectly.

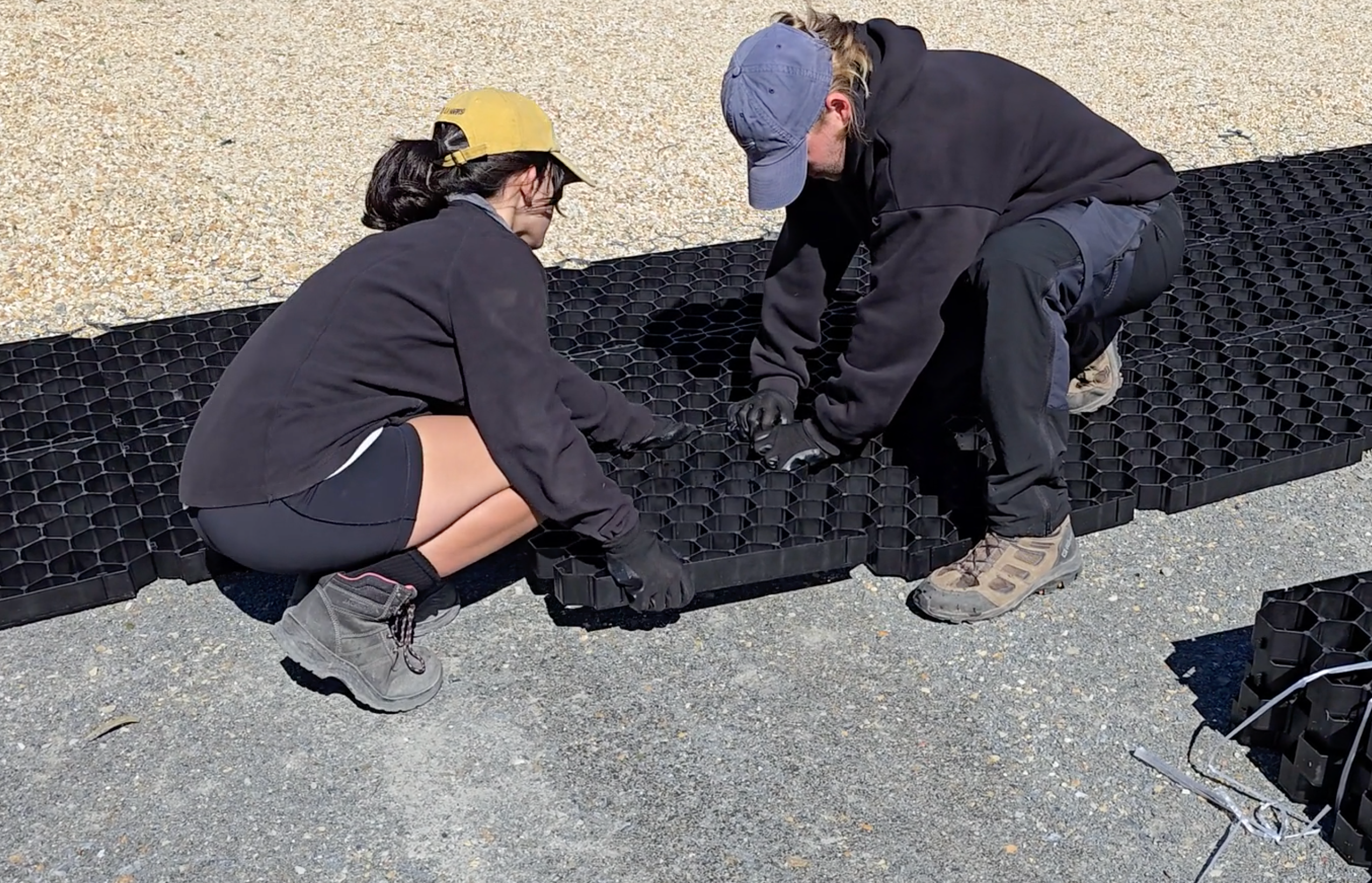

5. CLICK THE GRIDS INTO PLACE

Ezyhex grids feature an interlocking design that makes assembly a breeze. Simply click the grids together, ensuring they are tightly connected to form a solid surface.


6. SECURE THE GRIDS (IF NECESSARY)

In high-impact areas like driveways—we recommend securing the outer edges of the EzyHex grids with metal pins. This helps anchor the system in place and prevents movement under pressure from vehicles or water flow.

If you’re not installing curbs or edge restraints to lock the grids in, metal pins are especially important to keep the structure tight and stable. You only need to pin the outer perimeter, not every grid.

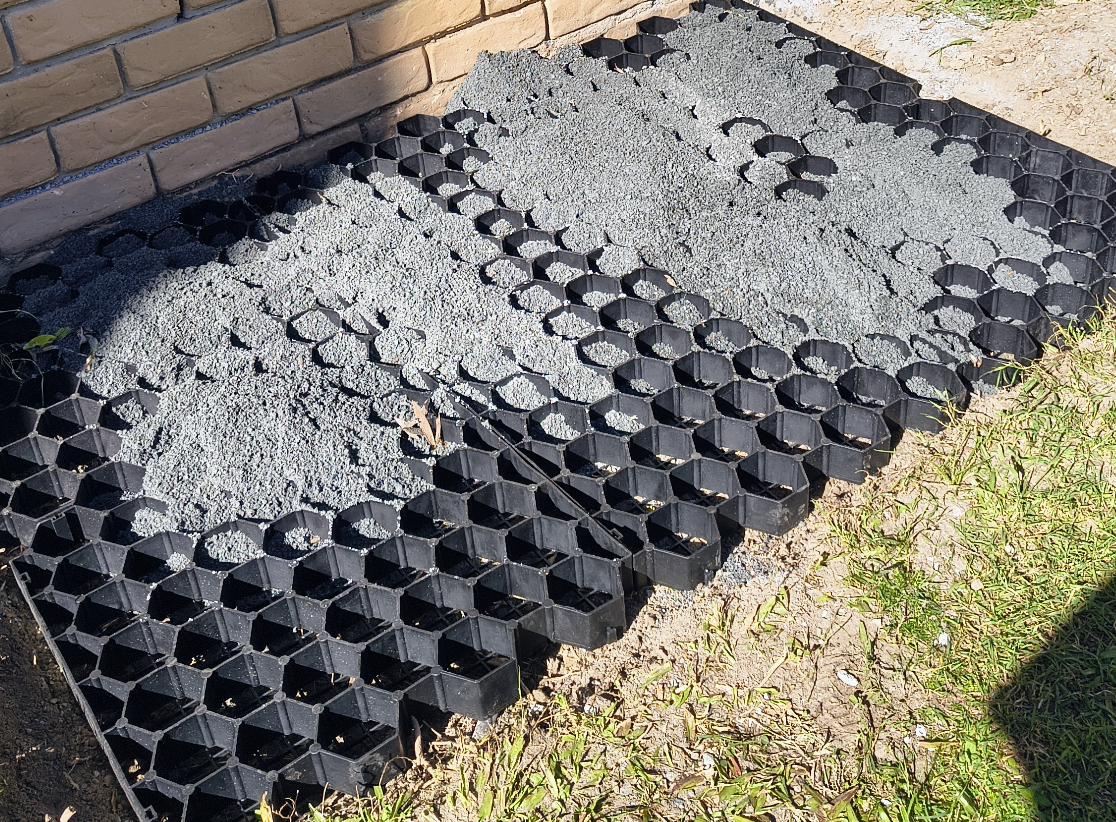

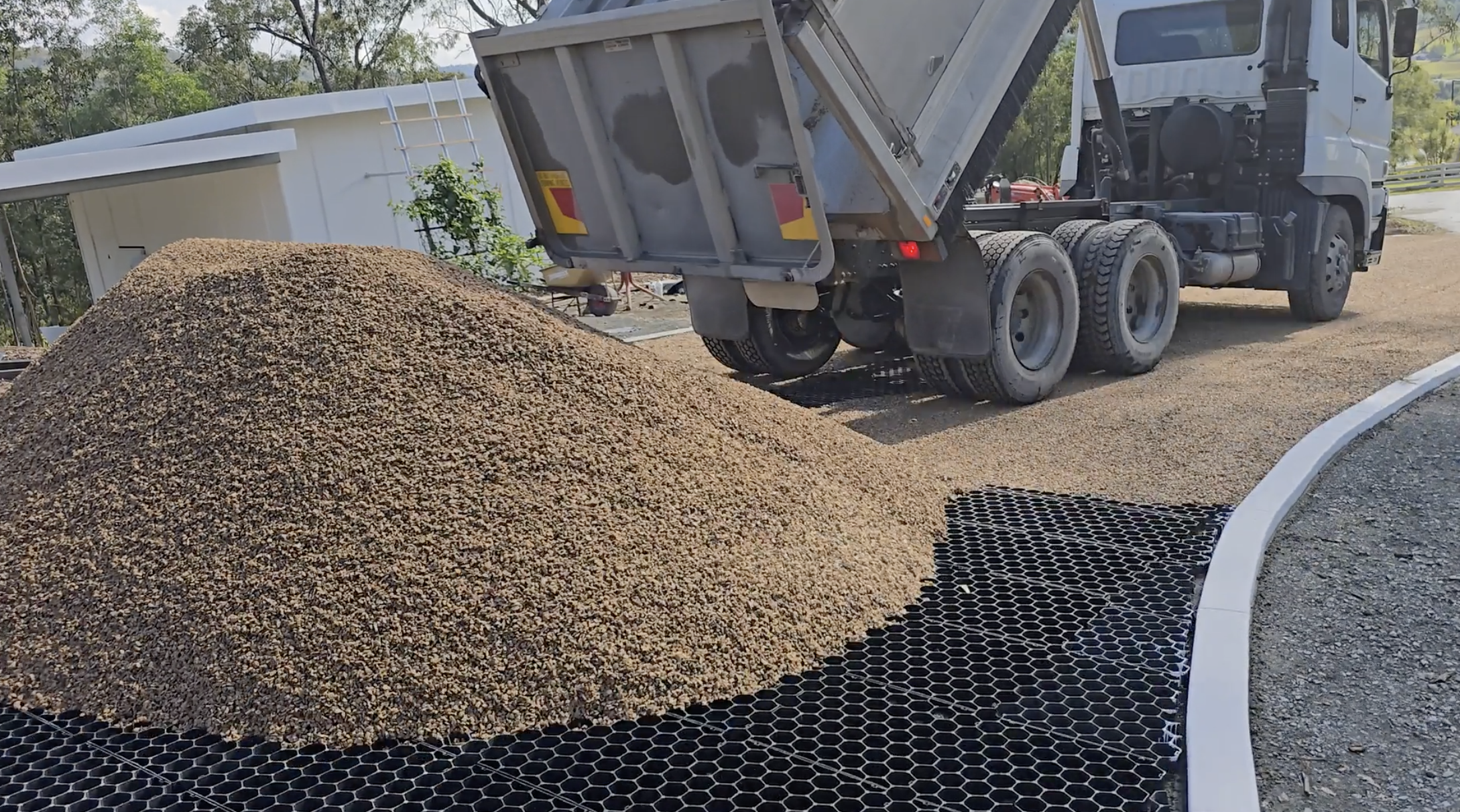

7. FILL THE GRIDS with Your Chosen Material (10mm - 15mm)

Once the grids are in place, fill them with your chosen material—gravel, decorative rock, soil, or turf—making sure the fill is 10mm or smaller for best results. For driveways or high-traffic areas, gravel or crushed rock offers the best strength and stability, while soil and grass are ideal for landscaped zones, allowing proper drainage and protecting turf roots. After compacting the fill, the grids should not be visible, so it’s best to overfill by around 15mm. The interlocking cells hold the material firmly in place to prevent sinking or shifting over time.


8. COMPACT AND FINISH

Ensure the grids are completely covered with rock, decorative gravel, or grass, making sure no sections are visible. Rake the surface to create an even look, checking for any gaps and adding more material if needed. Finally, clean up any excess around the edges for a neat finish. Enjoy your beautifully completed project! Tag us in your project to be featured on our socials!

DIY Installation Manuals

Are you ready to tackle your next project on your own? With Exyhex,
you can! Our comprehensive DIY Installation Manual is designed to guide
you every step of the way, ensuring you have all the information you
need for a successful installation.

Download the EZYHEX Installation Guide

Local, Flexible & Aussie-Owned

Based in Brisbane, we offer local pickup by appointment in Cornubia and can deliver across Brisbane, the Gold Coast and the Sunshine Coast. For the rest of Australia, if your order is large enough we can arrange delivery—just email us with your project details. We work with every customer to find the most affordable freight option, so get in touch before placing your order and we’ll help you secure the best deal.

About Us

The Effortless Way to Build Strong, Stable Ground — Anywhere

When you’re tackling a landscaping or construction project, the last thing you want is unstable, uneven, or rut-prone ground. Whether it’s a muddy driveway, patchy turf, or waterlogged area that never quite dries out — surface problems can undo all your hard work.

That’s where Ezyhex steps in.

Our advanced hexagonal geogrids are designed to create strong, stable surfaces that last — without the hassle. Built for durability and engineered for simplicity, they offer a DIY-friendly solution for anyone wanting professional results.

  • Dimensions

    Size: 500mm x 500mm x 50mm (H)

    Weight: Approximately 1.8kg per square meter

    Gravel size: 10mm - 15mm

    Not recommended for slops greater than 15%.

  • Sustainability

    Made from 100% recyclable, non-toxic material, this product is safe for humans, animals, and plants, and is inert and non-reactive—resisting solvents, oils, chemicals, and water.

  • Load Ratings

    Max Load (Filled): 160tonnes per square meter
    Max Load (Unfilled): 90tonnes per square meter
